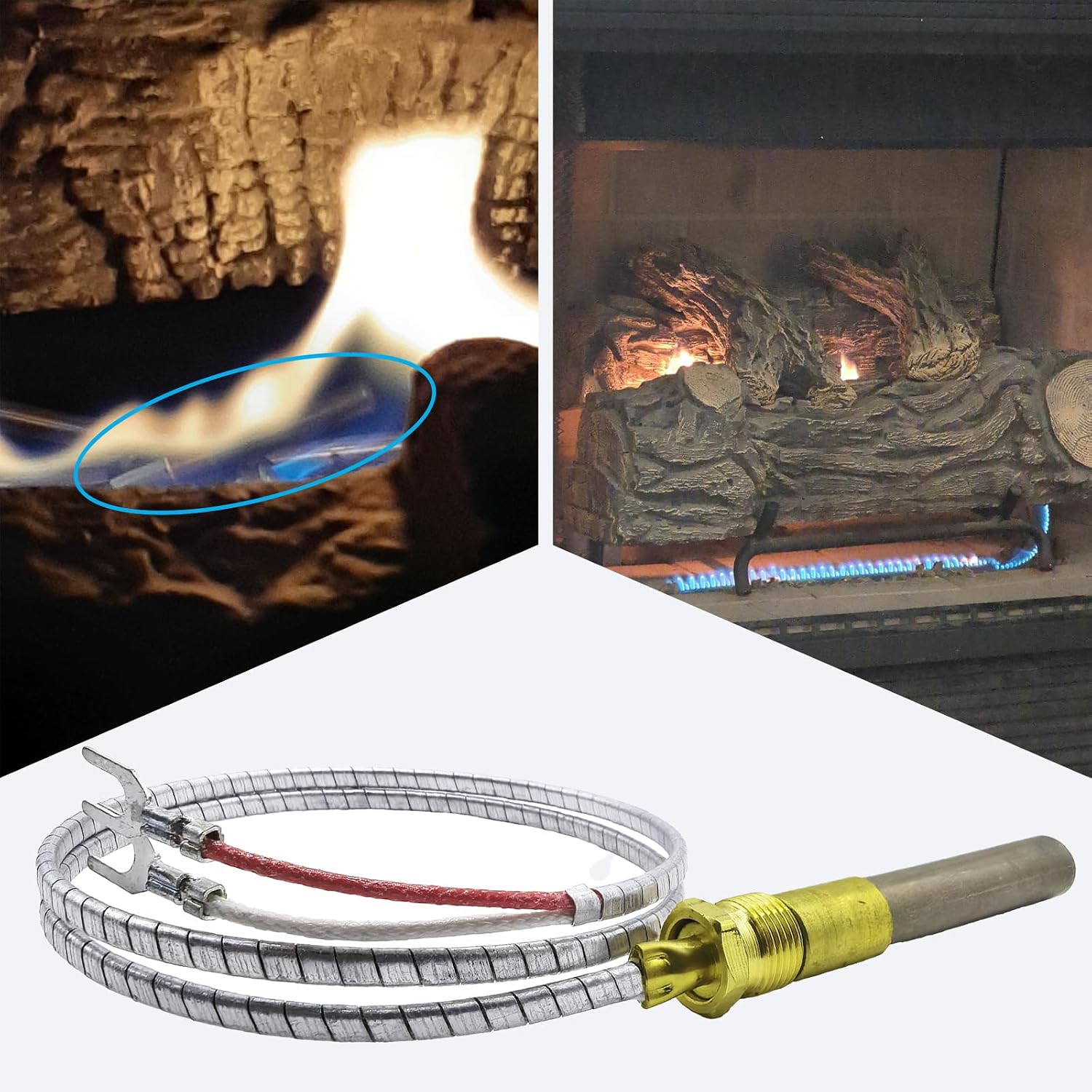

Q313A 750 Millivolt Thermopile, 24 Inch Length – Direct Replacement for Gas Water Heater, Fireplace Pilot, Fryer, and Oven – Aluminum & Fiberglass Construction, 1-Pack

Your gas fireplace won’t ignite. Your water heater pilot keeps going out. Before you call for expensive service, check the thermopile. This small but critical component is often the culprit, and replacing it yourself is simpler than you think. Here’s What Makes This a Practical Choice: 1. It’s About Restoration, Not Complication. You’re not buying a complex piece of electronics. You’re replacing a wear item that converts heat to electricity. When the old one fails, voltage drops, and the safety valve won’t open. This new one restores that essential function. It’s the most common and cost-effective fix for standing pilot systems. 2. The Right Materials for a Harsh Job. Sitting in a pilot flame is a brutal environment. We use an aluminum alloy sheath and fiberglass-insulated leads because they resist oxidation, cracking, and heat degradation better than inferior materials. This isn’t just “high-temperature resistant”; it’s built specifically to survive where it’s installed. 3. Clarity Over Guesswork in Compatibility. While designed as a universal replacement for Q313A-type thermopiles, compatibility depends on your specific appliance. The 24-inch length and standard connectors fit most common setups. Check your old part’s length and connection style against ours. If it matches, it will work. 4. A Straightforward Process for Any Capable User. Safety First: Turn off the gas supply to the appliance. Access & Remove: Locate the old thermopile next to the pilot assembly, disconnect its two wires, and unscrew it. Install: Thread the new thermopile into the same port, position the tip in the pilot flame path, and reconnect the wires. Test: Restore gas and relight the pilot according to your appliance’s manual. Wait 1-2 minutes for it to heat up and open the valve. Common Applications: Restoring ignition to gas fireplaces with standing pilots. Fixing a water heater that won’t produce hot water due to pilot outage. Repairing gas-fired fryers, ovens, or space heaters in residential or light commercial use. Serving as a reliable spare part for technicians and knowledgeable homeowners. Common Compatibility: For Models: QV32 QV32-AQV32B QV32B-A(Pre Serial # 0021080519)QV36 QV36-AQV36B-A (Pre Serial#0021076968)QV36D QV36D-A QV36DB QV36DB-A QVI25 QVI30 QVI35 QV-25FB QVI-30FB QV Pier Heat N Glo Gas Stoves: AT-Grand (Also fits the B, C and D models) AT-nsent AT-Supreme (Also fits theB, C and Dmnodels)AT-ZCaid AT-ZC-B Bay Insert and Bay Insert NS CFX Grand-B CFX-IN-B FB-Grand FB-IN FB-ZC Grand-135-SP Grand-XT Supreme-I30-SP Supreme-XT ZC-XT Bay-38HV Bayfye-TRS Bay-GDV-95 - After May 1996 L-COR-TR L-COR-TRC L-COR-IPI Pier-38HV Pier-TR Pier-TRC Pier-TVFL R-COR-TR R-COR-TRC R-COR-TRC-IPI ST-38HV/ST-42TVFL ST-TR ST-TRC 6000BE 6000Camp 6000DVTFL-After serial # 12614 6000FLS 6000G 6000GBV6000GDVFL -Afterdate code 2/96(Only for 30 sec pilot assembly) 6000SEB 6000TRB 600OTRI 600TRI-SP 6000TR-NF 600TR-OAK 600TRXI 6000TVB000TV-OAK 600XL 600XLS 60XLS-NF 000XLS8 60XLT 600XLT-NF6000XLTB700TR-NF 7000TV-NF 700XLS-NF 700XLT-NF 8000 & 8000C-LP 800DVTFL - After date code 2/96 B000GDVFL-After date code 2/96 8000TR 800TRC 8000TRD 800TR-Qak- Pre serial#0021116425 8000TVC 8000TVD 8000TV-Oak-Pre serial#0021116948 BE-41BE-41BBE-41B-IPI Replace the Thermopile or Robertshaw Model,s Emerson Models, Pitco Models Etc.

• 24" Q313A Thermopile Widely compatible：Fits Empire DV210, DV215, GWT25, GWT35, and GWT50 Models Replacement of PITCO 60125501and 60125501, 60J79, 60J7901, H5882, R942, R1054, 2103-512, 1950-001, 071515, 53374, 7533113
• Delivers the Required 750mV to Get Your Appliance Running Again：The Thermopile is a Replacement of Fireplace Pilot Burner Assemnly Parts with Internal resistance (25°C) around 4000 mΩ and heating voltage above 750mV. Specifications: Length 24"(609mm) Glass Fiber Wire. If your pilot light won’t stay lit or the main burner won’t start, replacing the old thermopile with this one often solves the problem immediately.
• Built to Handle the Heat, So It Lasts： The sensor head and aluminum-shelled wiring withstand continuous direct flame exposure up to 750°C. The fiberglass wrapping protects against brittleness and short circuits, giving you a durable part designed for long-term service.
• Fits a Wide Range of Common Gas Appliances： This 24-inch universal thermopile replaces many popular models. It’s commonly used in gas fireplaces, water heaters, furnaces, fryers, and ovens from various brands, making it a versatile part to keep on hand.
• Straightforward Installation – Connect and Go： Featuring standard spade connectors and a universal mounting thread, installation is a simple swap. Turn off the gas, replace the old unit, reconnect the wires, and relight the pilot. No special tools or expertise needed.
• Realistic Performance Expectations for Reliable Operation： For proper function, the pilot flame must engulf the tip. It needs about 60-120 seconds to heat up and produce sufficient voltage. This normal warm-up time ensures your gas valve receives stable, reliable power to operate safely.
